Excel Table created by GemBox must be repaired before Excel can open the file

GemBox.Spreadsheet
1

Version 49.0.1623

Adding a table with these lines, causes an error when opening the excel file generated (attached). Are the additional details I should define at this time?

   worksheet.Tables.Add("dataTable", "A1:" + worksheet.Columns[CountA + 3] + (CountB+ 1), true);
   worksheet.Tables["dataTable"].BuiltInStyle = BuiltInTableStyleName.TableStyleMedium2;
   worksheet.Tables["dataTable"].StyleOptions = TableStyleOptions.BandedRows;

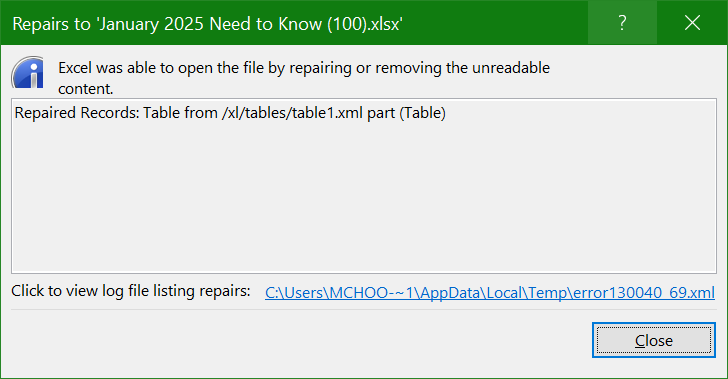

image1379×177 5.27 KB

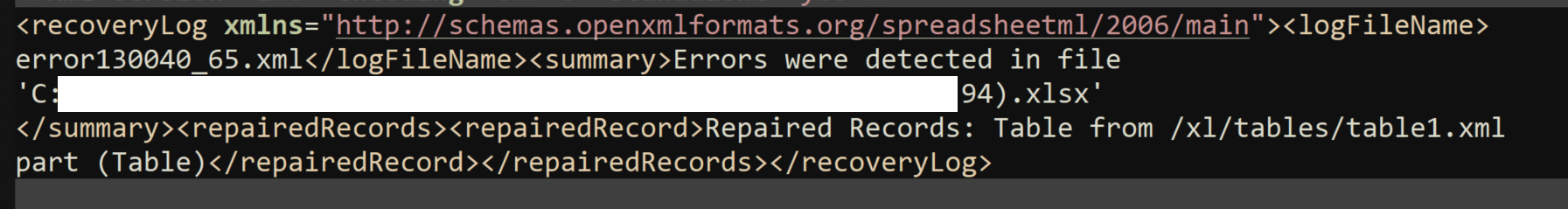

image728×379 12.1 KB

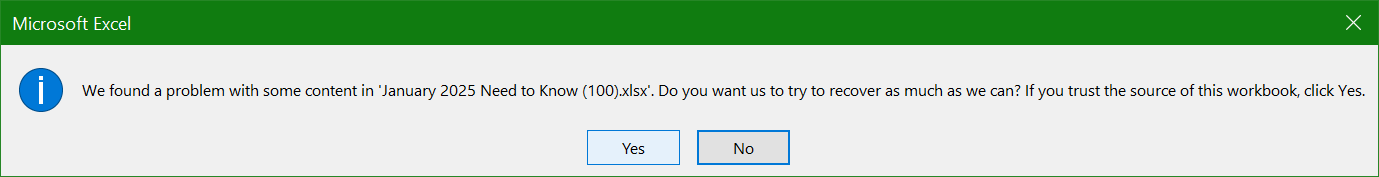

image1793×239 111 KB

2

Hi,

Please try again with the current latest version of GemBox.Spreadsheet:

Does this solve your issue?

Regards,
Mario

3

Thank you Mario!

Unfortuatnely I still cannot get approval for an updated license.

The error occurs when I Add or InsertAt a column to an existing table.

Can you think of any work around for either of these cases?

4

Can you send us that XLSX so we can investigate it?
I presume that the problem could be with the column’s name.

5

Thanks Mario, Here are the outputs from having GemBox adding the table to an existing template file as well has having it add a column to an existing table in the template… it may not be the same error in both cases.

6

https://www.dropbox.com/scl/fo/g9ma3yxzadui4u6ol83rz/AFEpq01X1qmXbYD275ueUWM?rlkey=lom0um8itzu7ehgrzqbe5wbcu&st=8asse4ya&dl=0

7

The problem occurs because the last two TableColumn have the same name:

var workbook = ExcelFile.Load("January 2025 Results - Table Column Added by Gembox.xlsx");
var worksheet = workbook.Worksheets.ActiveWorksheet;
var table = worksheet.Tables[0];

foreach (var column in table.Columns)
    Console.WriteLine(column.Name);

To resolve this with your older version of GemBox.Spreadsheet, you’ll need to make sure that the names are unique, for example:

var uniqueNames = new HashSet<string>();
foreach (var column in table.Columns)
{
    string originalName = column.Name;
    string uniqueName = originalName;
    int counter = 0;

    while (uniqueNames.Contains(uniqueName))
        uniqueName = originalName + ++counter;

    if (originalName != uniqueName)
        column.Name = uniqueName;

    uniqueNames.Add(uniqueName);
}

I hope this helps.

Regards,
Mario

8

Much appredicated Mario! I’ll let you know how it goes.
Thank you!
