Error creating a new ContentRange

GemBox.Document
1

Hello,
I have a ContentRange variable: a, this works: a.ToString(), then I have a ContentRange variable b, this also works: b.ToString()(this is for example: ‘\r\n’). I need to know why this fails: new ContentRange(a.Start, b.End).ToString() with the following error:

The end of current content range couldn’t be found!

2

Hi Mirel,

Please create a small Visual Studio project that reproduces your issue so I can investigate it.
I’ll need to check the content of those ContentRange objects.

Regards,
Mario

3

Please see this example and use this file: Word file

using System;
using GemBox.Document;

class Program
{
    static void Main()
    {
        ComponentInfo.SetLicense("FREE-LIMITED-KEY");
        ComponentInfo.FreeLimitReached += (sender, e) => e.FreeLimitReachedAction = FreeLimitReachedAction.ContinueAsTrial;

        DocumentModel document = DocumentModel.Load("Word2 copy.docx");

        Console.WriteLine(document.Content.ToString());

        var paragraphs = document.GetChildElements(true, ElementType.Paragraph).ToList();
        var firstContent = paragraphs[0].Content;
        var secondContent = paragraphs[1].Content;

        var currentRange = new ContentRange(firstContent.Start, secondContent.End);
        Console.WriteLine(currentRange.ToString());
    }
}
4

Hi Mirel,

The problem occurs because the document has only one Paragraph in the body and one Paragraph in the header.
So, I’m afraid this cannot be represented with such a ContentRange object.

Can you tell me more about what you’re trying to accomplish here?

Regards,
Mario

5

Hi Mario,

I sent you only a part of the real Word file. I need to capture only body paragraphs, but in this example the first paragraph is the one in the body; why is the second one in a header?. How can I look for the body paragraphs?

6

The document.GetChildElements(true, ElementType.Paragraph) will return all the paragraphs in the document, including the ones in the header and footer.
To exclude those, you could use this:

var paragraphs = document.Sections
    .SelectMany(section => section.Blocks)
    .SelectMany(block => block is Paragraph p
        ? new[] { p }
        : block.GetChildElements(true, ElementType.Paragraph).Cast<Paragraph>())
    .ToList();

I hope this helps.

1 Like
7

Thank you very much. Could you check why the library detects only 1 paragraph in this file and the Microsoft library detects 2? File: https://we.tl/t-AldHJsdaYp

8

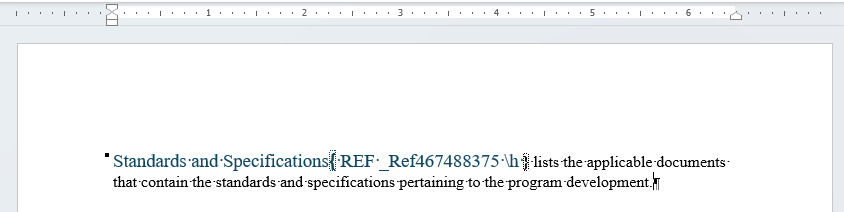

There is a strange layout here, the paragraph end is actually located inside the Field element.
In other words, if you press ALT + F9 you’ll notice this:

image844×212 11.2 KB

The problem with this is that GemBox.Document doesn’t support block-level elements inside a Field element. But note that we’re currently working on this feature.

1 Like
9

Hi. How can I follow updates on the progress of that feature? Thanks.

10

Hi Mirel,

You can subscribe to this feature request:
https://support.gemboxsoftware.com/community/view/enhance-gembox-document-content-model

I hope this helps.

Regards,
Mario

1 Like
